Expanders

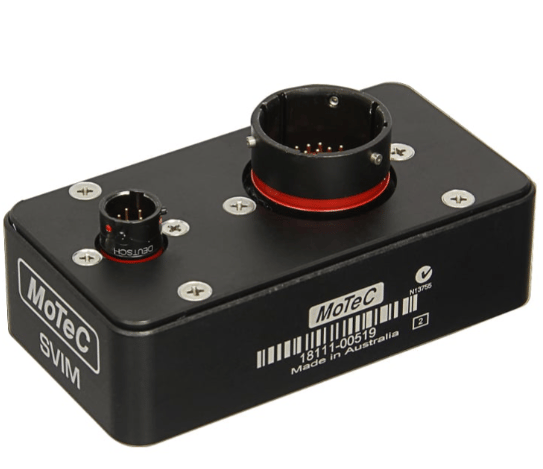

The Synchronous Versatile Input Module (SVIM) is a compact expander that works in conjunction with an ACL or ADL3 Data Logger to facilitate the synchronized logging of high-speed, high-resolution inputs.

The SVIM acquires data of the highest integrity for use in advanced chassis and suspension analysis. It samples 18 inputs at the same instant in time using 18 separate converters with 5th order anti-aliasing filters.

Compatible with:
ACL (up to eight SVIMs)
C185 (up to two SVIMs)

Inputs:
6 x Fast analogue voltage inputs
Update rate 5000 Hz (1000 Hz when used with ADL3), resolution 12 bit

Used to measure the signals from sensors with variable voltage outputs, such as potentiometers, 3-wire pressure sensors, thermocouple amplifiers, accelerometers.
----------------------------------------

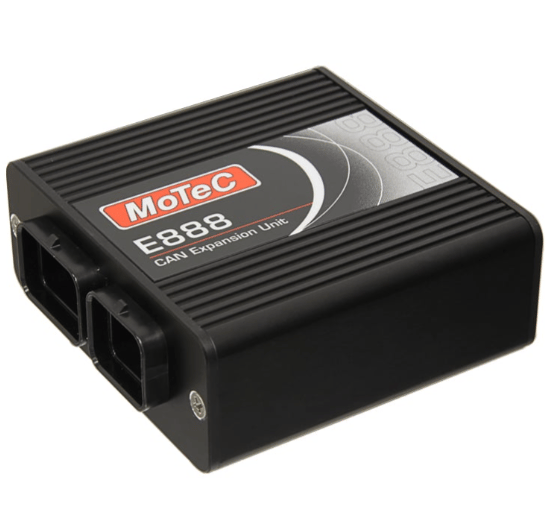

The E888 Expander modules are designed to increase the I/O (input/output) capacity of MoTeC products.

With CAN connectivity and a number of configurable inputs and outputs, they provide customers with greater flexibility to add sensors, customize channels and control more auxiliary functions.

The E888 and E816 expander inputs have medium resolution and update rate, where higher update rates or resolution are required consider using the VIM input expander.

Compatible with:
SDL3 - only 8 thermocouples on E888.
ADL3 / EDL3 - up to two E888 or E816.
ACL - up to two E888 or E816.
M400, M600, M800, M880 - one E888 or E816.

**To order please email us directly at [email protected] **
